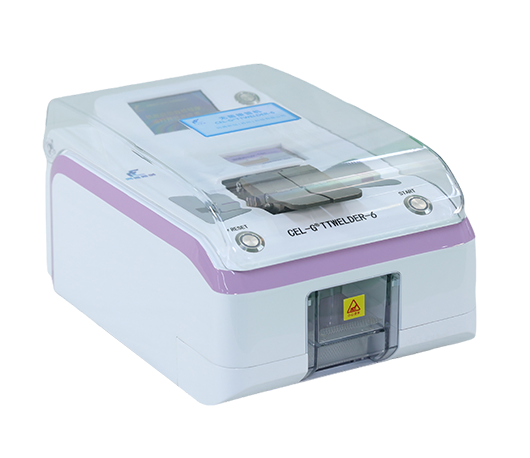

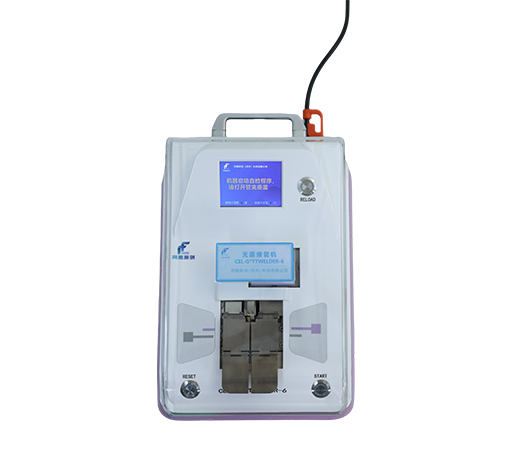

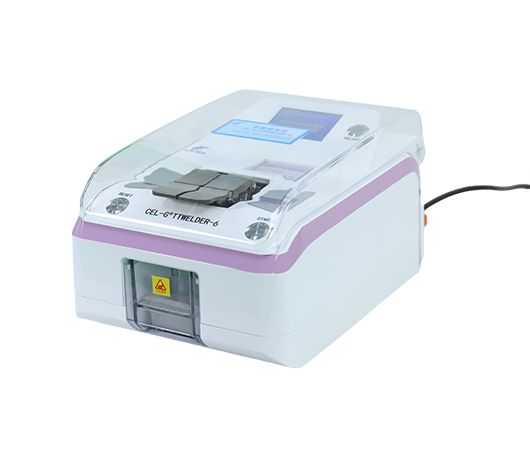

TTWELDER-6 Aseptic Taking Over Machine

Product Number Product Model Name
C03.001.001 CEL-G®TTWELDER-6 CEL-G® TTWELDER-6 Aseptic Receiver
C03.003.001 TW-100 TTWELDER-6 Fusing Sheet (100pcs/box)

Overview Parameter Consumables Resources COA

CEL-G ®TTWELDER-6 Aseptic takeover machine is a method of connecting two pipelines by cutting and reconnecting a catheter at high temperature using a fuse. Easy to operate, it can also be reset with the top cover open, with one click reset and one click welding. The display screen shows the real-time welding temperature and number of welding sheets, maintaining a sterile state during cutting and bonding processes, and preventing the formation of particles or chemical residues inside the tube. Compact design, easy to move, one machine can adapt to thermoplastic pipes with outer diameters of 3.9mm-6.0mm and inner diameters of 2.9mm-4.1mm.



Product Features

  1. Short time efficiency: fast, reliable and automated connections can be realised in a short period of time.

  2. Easy to operate: one key to reset, one key to weld according to the touch screen step-by-step operation prompts can be accurately and correctly to achieve the takeover.

  3. Real-time monitoring: Real-time display of fusing temperature and number of fused pieces remaining.

  4. Flexible application: it can be adapted to the pipeline with the outer diameter of 3.9mm-6.0mm and the inner diameter of 2.9mm-4.1mm, and it is easy to connect with empty pipe and with liquid.

  5. Multiple alarms: alarm for lack of fusing piece, alarm for bad installation of fusing box, alarm for jammed fusing piece, alarm for too high temperature, alarm for motor failure, alarm for temperature controller failure.

工作原理



Industry Application
